Magnetic tester w/Ultra-Thin, flat, Axial, or 3-axis probes
Static DC Gaussmeters w/ Choice of Ultra-Thin, Transverse, or Axial Probes
Typical Applications include Measurements of the Earth's Magnetic Field Vectors, Air Shipment Inspection, Mapping and Recording Field Perturbations, Magnet Classification, Analysis of Magnetic Circuitry and Components, Magnetic Resonance Imaging (MRI), Measuring Residual Fields, Audio Speakers, and General Magnetic Field Testing
- Portable w/ Dimensions:
- 5.8" x 3.6" x 2.5"
- Range:
- +/-(2 G, 20G, 200G, 2000G)
- Bandwidth:
- 68 Hz at 3 dB
- Comes with 9V DC Adaptor & Hard Carrying Case
- Analog Output:
- +/-200 mV DC @ Full Scale
- 3 1/2 Digit Bipolar Display
- Powered by either 9V Battery or AC Adaptor
- 3% Error Guarantee
- Resolution:
- @ 2 G Scale: 1 mG
- @ 20 G Scale: 10 mG
- @ 200 G Scale: 100 mG
- @ 2000 G Scale: 1 G
- High Linearity Hall Effect Transverse Probe w/ 3.5' Shielded Cable
- 2 Years Parts & Labor Warranty
- Made in the U.S.
- Portable w/ Dimensions:
- 5.8" x 3.6" x 2.5"
- Range:
- 20G, 200G, 2000G, 20 kG
- Comes with 9V DC Adaptor & Hard Carrying Case
- Analog Output:
- +/- 200 mV DC FS
- 3 1/2 Digit Bipolar Display
- Powered by either 9V Battery or AC Adaptor
- 3% Error Guarantee
- Resolution:
- @ 20 G Scale: 10 mG
- @ 200 G Scale: 0.1 G
- @ 2000 G Scale: 1 G
- @ 20 kG Scale: 10 G
- High Linearity Hall Effect Transverse Probe w/ 3.5' Shielded Cable
- Hall Effect Axial Probe w/optional 3.5' Shielded Cable
- 2 Years Parts & Labor Warranty
- Made in the U.S.

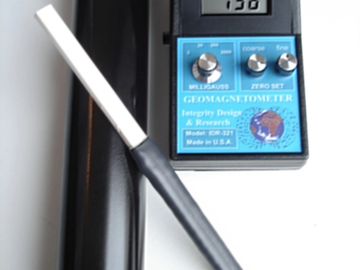

- Portable w/ Dimensions:
- 5.8" x 3.6" x 2.5"
- Range:
- 2mG, 20mG, 200mG, 2000mG
- Recorder Output
- Optional AC Adaptor
- Portable with Included Hard Case
- 2% Error Guarantee
- Resolution:
- @ 2 mG Scale: 1 uG
- @ 20 mG Scale: 10 uG
- @ 200 mG Scale: 100 uG
- @ 2000 mG Scale: 1 mG
- Continuous Use with 9V Alkaline
- Sensor Probe:
- High Sensitivity Hall Generator w/ FWBELL Model BH-850
- Made in the U.S.

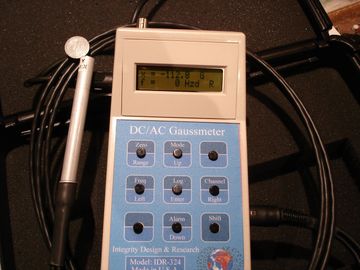

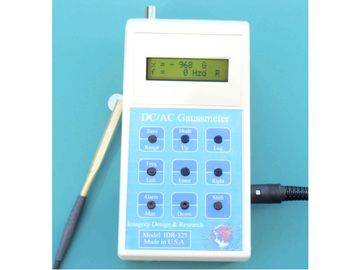

AC/DC Gaussmeter/Teslameter with single transverse, axial or 3-axis probes
These models are portable instruments that Utilize a single or 3-axis Hall probes to measure magnetic flux density from permanent magnets, audio speaker, electric motor armatures, transformers, coils, MRI, Earth magnetic field, AC EMF interferences,etc
- Switchable between transverse and axial probe
- 4 AA Alkaline Batteries
- True RMS measurement with peak hold
- One volt full scale Analog Output
- Optional 6V DC adaptor provided
- less than 3 % error guarantee
- Frequency Response (BW): DC -1 kHz (Tested)
- DC, AC: (20 Hz - 1 kHz) and AC + DC: (0 - 1 kHz) modes
- Auto or manual ranging with auditory alarm
- Data logs up to 32,000 data points
- Record data w/ RS-232 communication port
- Resolution @ Scales: 300 G:100 mG, 3 kG: 1 G, 30 kG: 10 G
- Made in the U.S.A
- Switchable between single and 3- axis channels
- Vector Summation M for 3 channels X,Y,Z
- Frequency indicator
- True RMS measurement with peak hold
- One volt full scale Analog Output
- DC adaptor provided
- 3 % error guarantee
- Frequency Response (BW): DC -1 kHz (Tested)
- DC, AC: (20 Hz - 1 kHz) and AC + DC: (0 - 1 kHz) modes
- Auto or manual ranging with aud
- Data logs up to 32,000 data points
- Record data w/ RS-232 communication port
- Resolution @ Scales: 300 G:100 mG, 3 kG:1 G, 30 kG:10 G
- Made in The U.S.A.

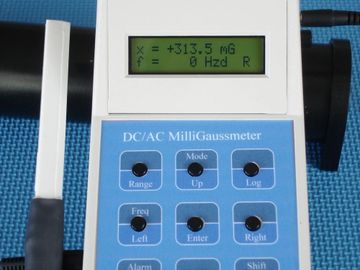

IDR-322:AC/DC MilliGaussmeter
$1695.00
- Frequency indicator
- Scale: +/-(4, 40, 400, 4000 mG)
- 4 AA Alkaline Batteries included
- True RMS measurement with peak hold
- One volt full scale Analog Output
- Optional 6V DC adaptor provided
- 3 % error guarantee
- Frequency Response (BW): DC -750 Hz (Tested)
- DC, AC: (5 Hz - 750 Hz) and AC + DC: (0 -750 Hz) modes
- Auto or manual ranging with auditory alarm
- Datalogs up to 32,000 data points
- Record data w/ RS-232 communication port
- Resolution @ Scales: 4 mG:1 uG, 40 mG:10 uG, 400 mG: 0.1mG, 4 G: 1 mG
- Made in the USA
To Place your order online on a specific gaussmeter listed above , please select it from "All products"
